Location：Home>Products>Peristaltic pump head

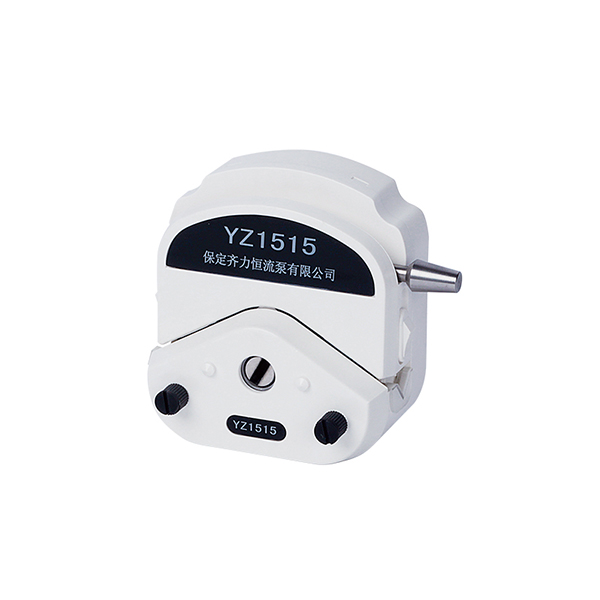

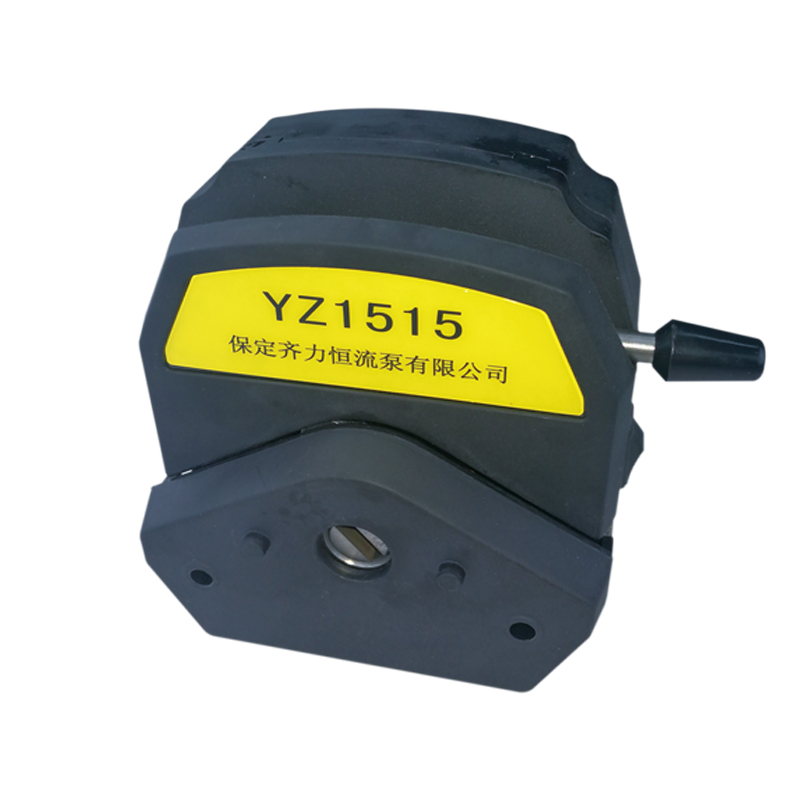

YZ1515 pump head

Quick replacement of hose, with automatic adaptation of pipe clamping device, is applicable to various specifications of hose. The rollers are made of high-quality stainless steel, with good durability, excellent rigidity and structural performance, and stable performance. The pump head made of PESU material shell is resistant to 150 ℃ high temperature and organic solvent. PPS material casing pump head, resistant to 150 ℃ high temperature and organic solvent.

Flow range：0.07-2280ml/min

Maximum number of channels：2

Tel：0312-3332188 0312-6776688 Online communication

Introduction

Parameter

Guide

video

Quickly replace the hose, with automatic adapting to the tube device, suitable for a variety of specifications of hoses, the rollers are made of high-quality stainless steel, with good durability, excellent rigidity and structural performance, stable performance, PESU material shell pump head, It is resistant to high temperature of 150℃ and not resistant to organic solvents. PPS material shell pump head, resistant to high temperature of 150 ℃, resistant to organic solvents.

model	Reference flow range (mL/min)	range of rotation (rpm)	Applicable hose	Number of rollers	weight(kg)
YZ1515	0.07 - 2280	1- 600	13# 14# 19# 16# 25# 17# 18#	3	0.4

YZ1515 Peristaltic Pump Head Dimensions

Prev：YZ35pump head

Next：DMD15pump head
