Location：Home>Products>Peristaltic pump head

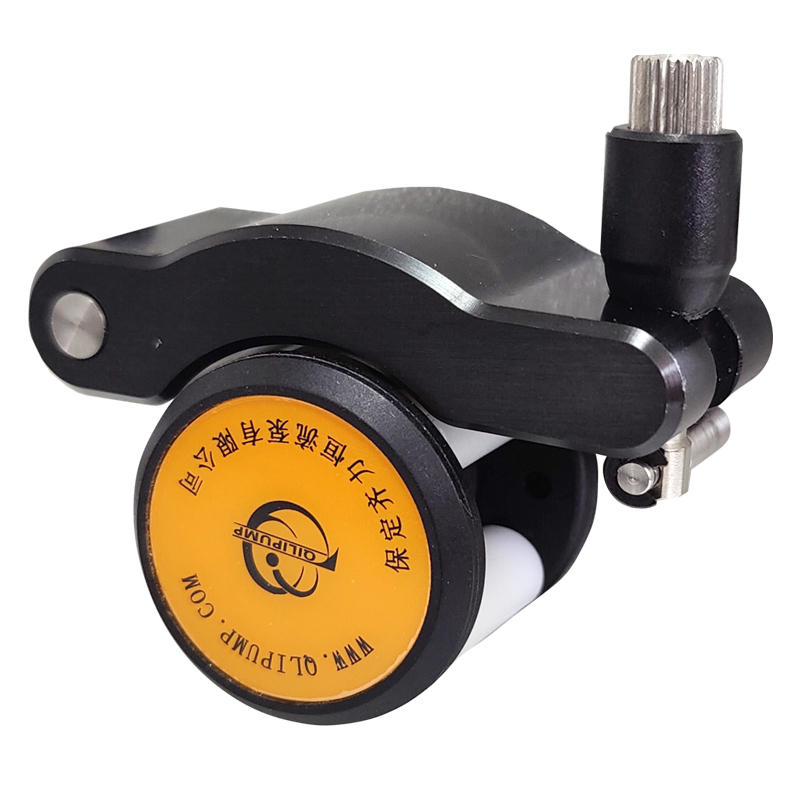

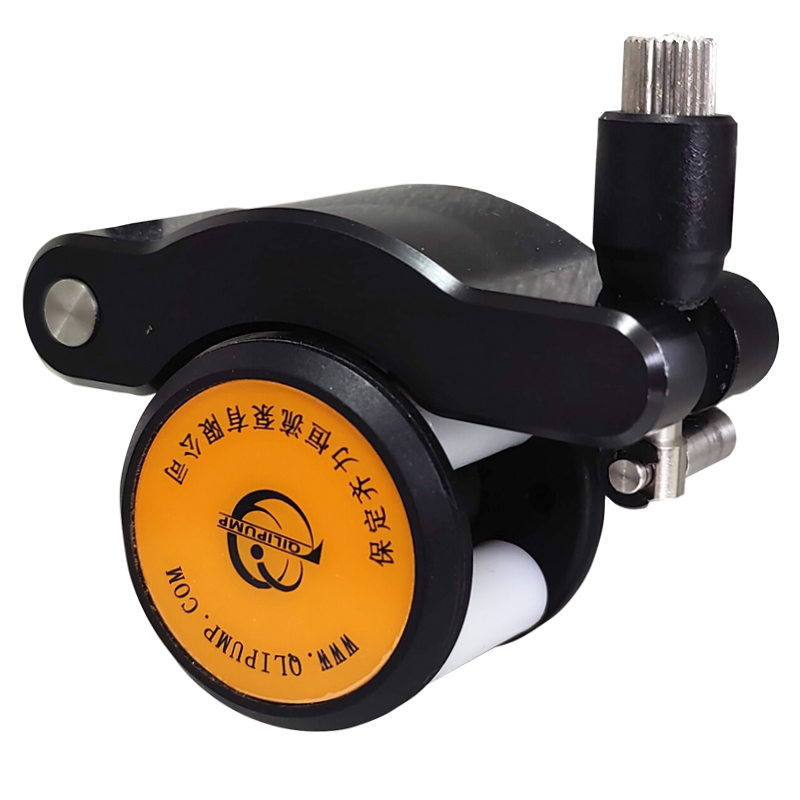

Mini-flow peristaltic pump head JY10

It is suitable for ink transmission, COD water treatment, environmental protection sampling, medical equipment matching and other fields. It has the characteristics of high precision and micro transmission.

Flow range：0.004-44ml/min

Maximum number of channels：

Tel：0312-3332188 0312-6776688 Online communication

Introduction

Parameter

Guide

video

It is suitable for ink transmission, COD water treatment, environmental protection sampling, medical equipment matching and other fields.
It has the characteristics of high precision and micro transmission.

Drive model	Number of pump head rollers	Number of channels	Applicable hose	Speed range	Maximum reference flow
					（ml/min）
JY10-14	4	1	1×1	0.1-100	0.004-4
			2×1		0.025-25
			2.4×0.8		0.029-29
			3×1		0.044-44
JY10-18	8	1	1×1	0.1-100	0.0036-3.6
			2×1		0.018-18
			2.4×0.8		0.02-20
			3×1		0.026-26
JY10-24	4	2	1×1	0.1-100	0.004-4
			2×1		0.025-25
			2.4×0.8		0.029-29
			3×1		0.044-44
JY10-28	8	2	1×1	0.1-100	0.0036-3.6
			2×1		0.018-18
			2.4×0.8		0.02-20
			3×1		0.026-26

Prev：Peristaltic pump head KZ25A

Next：Mini-flow peristaltic pump head WX10
