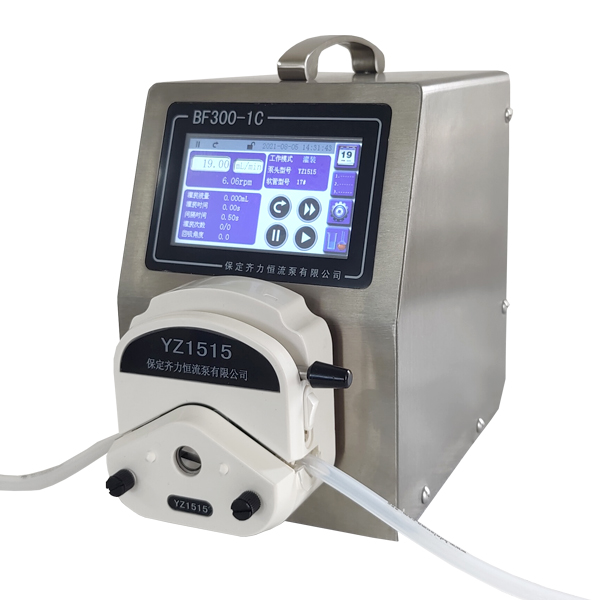

        Smart touch screen BF100 (300 600)-1C

        BF100-1C/BF300-1C/BF600-1C distributes the intelligent peristaltic pump, adopts the color LCD touch screen technology, the operation is simple. The interface is intuitive and clear. It is mainly used for accurate measurement and distribution of liquids, which can realize high-precision flow transmission. The distribution mode is used for liquid volume dispensing. When set to flow mode, it is equivalent to a flow-type peristaltic pump.

        Flow range:Flow range: 0.002-2280ml/min

        Maximum number of channels:2 channels

        Introduction

        Parameter

        Guide

        video

        typical application

        BF100-1C/BF300-1C/BF600-1C distributes the intelligent peristaltic pump, adopts the color LCD touch screen technology, the operation is simple. The interface is intuitive and clear. It is mainly used for accurate measurement and distribution of liquids, which can realize high-precision flow transmission. The distribution mode is used for liquid volume dispensing. When set to flow mode, it is equivalent to a flow-type peristaltic pump.

        main feature

        4.3-inch industrial-grade true color screen LCD display, intuitive interface, easy touch screen operation

        Suitable for YZ1515, YZ2515, BZ25 pump heads

        With independent full-speed button, it can quickly fill and empty the pipeline

        The peristaltic pump can be controlled through the external control interface

        With correction function, can ensure high accuracy through correction

        RS485 communication uses Modbus protocol, which is easy to debug and use

        304 stainless steel metal housing

        Working mode: flow mode, filling mode, appointment mode

        BF100-1C BF300-1C BF600-1C
        Speed adjustment range 0.01-100rpm 0.01-300rpm 0.01-600rpm
        Speed display resolution
        0.01rpm
        Display method
        4.3 inch industrial-grade true color LCD screen
        Dispensed liquid volume 0.01mL-9999.99mL
        Dispensed liquid volume resolution 0.01mL
        Number of allocations 0-999次(0 means infinite loop)
        time interval 0.1-9999.99秒
        Time resolution 0.01s
        Suction angle 0-360°
        External control input interface 0-5V,0-10V,4-20mA,0-10kHz
        Communication Interface RS485(MODBUS protocol)
        Applicable power supply Wide voltage AC100-240V, 50Hz/60Hz
        Power consumption <40W <50W <60W
        working environment Temperature 0-40℃, humidity <80%, no condensation
        Dimensions
        205×158×242(mm)
        (Length×Width×Height)
        Drive weight
        3.0kg 3.2kg
        Protection level IP31
        Driver applicable pump head
        YZ1515、YZ2515、DG
        Pump head hose Maximum flow (ml/min)
        BF100-1C BF300-1C BF600-1C
        YZ1515 13# 380 1140 2280
        14#
        19#
        16#
        25#
        17#
        18#
        YZ2515 15# 270 800 1600
        24#
        DG-(1、2、4、6)
        6Scroll wheel
        Wall thickness: 0.8-1mm
        Inner diameter: ≤3.17mm

        48 48(It is recommended to use ≤100rpm)
        DG-(1、2、4、6)
        10Scroll wheel
        32 32(It is recommended to use ≤100rpm)
