        Location:Home>Products>Basic type

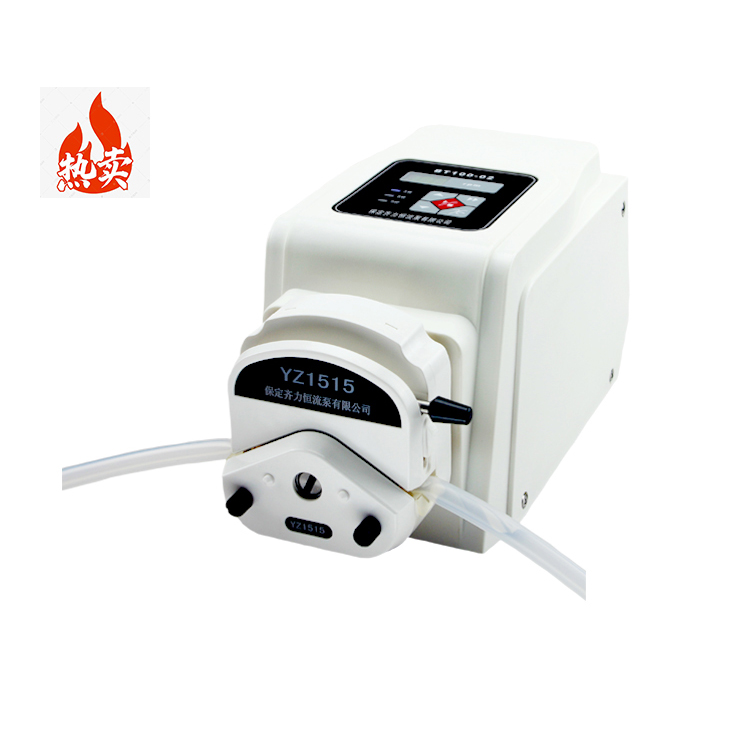

        Basic peristaltic pump BT100-02

        Mainly used in laboratories, the most commonly used basic type, suitable for conventional fluid transmission, pharmaceutical industry, fine chemicals, water treatment, Environmental protection engineering, food and beverage addition, and acid and alkali supplementation and defoaming in industrial fermentation systems. And many other general fields.

        Flow range:0.007ml-380ml/min

        Maximum number of channels:2 Channels

        Introduction

        Parameter

        Guide

        video

        typical application


        ????Mainly used in laboratories, the most commonly used basic type, suitable for conventional fluid transmission, pharmaceutical industry, fine chemicals, water treatment,

        Environmental protection engineering, food and beverage addition, and acid and alkali supplementation and defoaming in industrial fermentation systems. And many other general fields.

        main feature


        ????The stepping motor is subdivided and driven, with high precision and stable operation.
        ????The 3-digit LED digital tube displays the current speed, which is simple, intuitive and clear at a glance.
        ????The membrane button adjusts the speed, direction, start/stop, and the operation is simple and convenient; there is also a full-speed ????button for quick filling or emptying.
        ????With power-down memory function, power-on again after power-off, work according to the state before power-off.
        ????It can communicate with PC through RS485.
        ????It can be used with accessories such as sub-assembly controller, foot switch, external control module, etc. to realize small batch filling and distribution


        BT100-02 technical indicators
        range of rotation 0.1~100 rpm Speed resolution 0.1 rpm
        Display method 3-digit digital tube External control 0-10kHz、0-5V、0-10V、4-20mA、RS485
        Speed adjustment method Film button adjustment or external control adjustment External control function Speed control, direction control, start-stop control
        Applicable power supply AC 100V-240V Power consumption <35W
        working environment Temperature 0~40℃, relative humidity <80%, no condensation Dimensions (L×W×H) 191×105×138(mm)
        Drive weight 2.0kg Protection level IP31

        BT100-02 flow parameters
        Drive model Applicable pump head Applicable hose Reference flow range (ml/min) Number of channels
        BT100-02 YZ1515 13# 14# 16# 19# 17# 18# 25# 0.007-380 1
        YZ2515 15# 24# 0.17-270 1
        DG-(1, 2, 4) 6 rollers Wall thickness 0.8-1mm Single channel 0.0025-48 1、2、4
        DG-(1、2、4)10 rollers Inner diameter≤3.17mm Single channel 0.002-32 1、2、4

        相關產品

        *If you encounter any operation or quality problems of Qili constant flow pump, please contact us in time.

        *Baoding Qili constant flow pump Co., Ltd. guarantees 7 * 24 hours online.

        *Qili constant flow pump brand products have a one-year warranty and lifelong maintenance.

        *The product picture, model, data, function, performance, motor model, specification and other parameters of this website are for reference only. Qili constant flow pump can improve the above content. For more information, please refer to the product manual. Unless otherwise specified, the data contained in this website are the internal test results of Qili constant flow pump.
