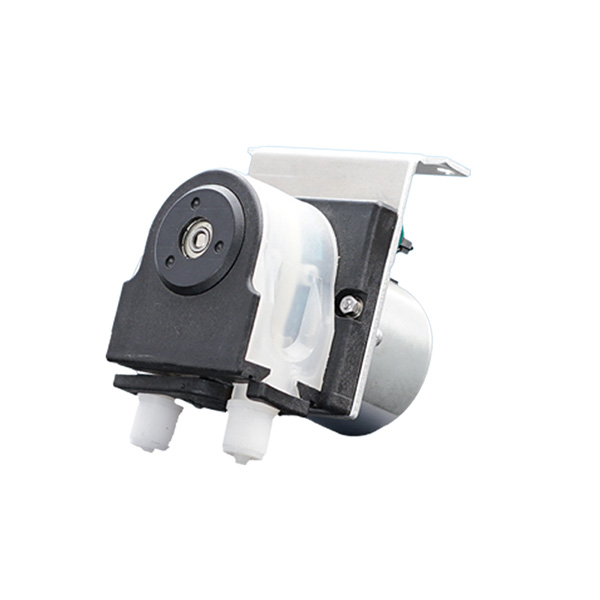

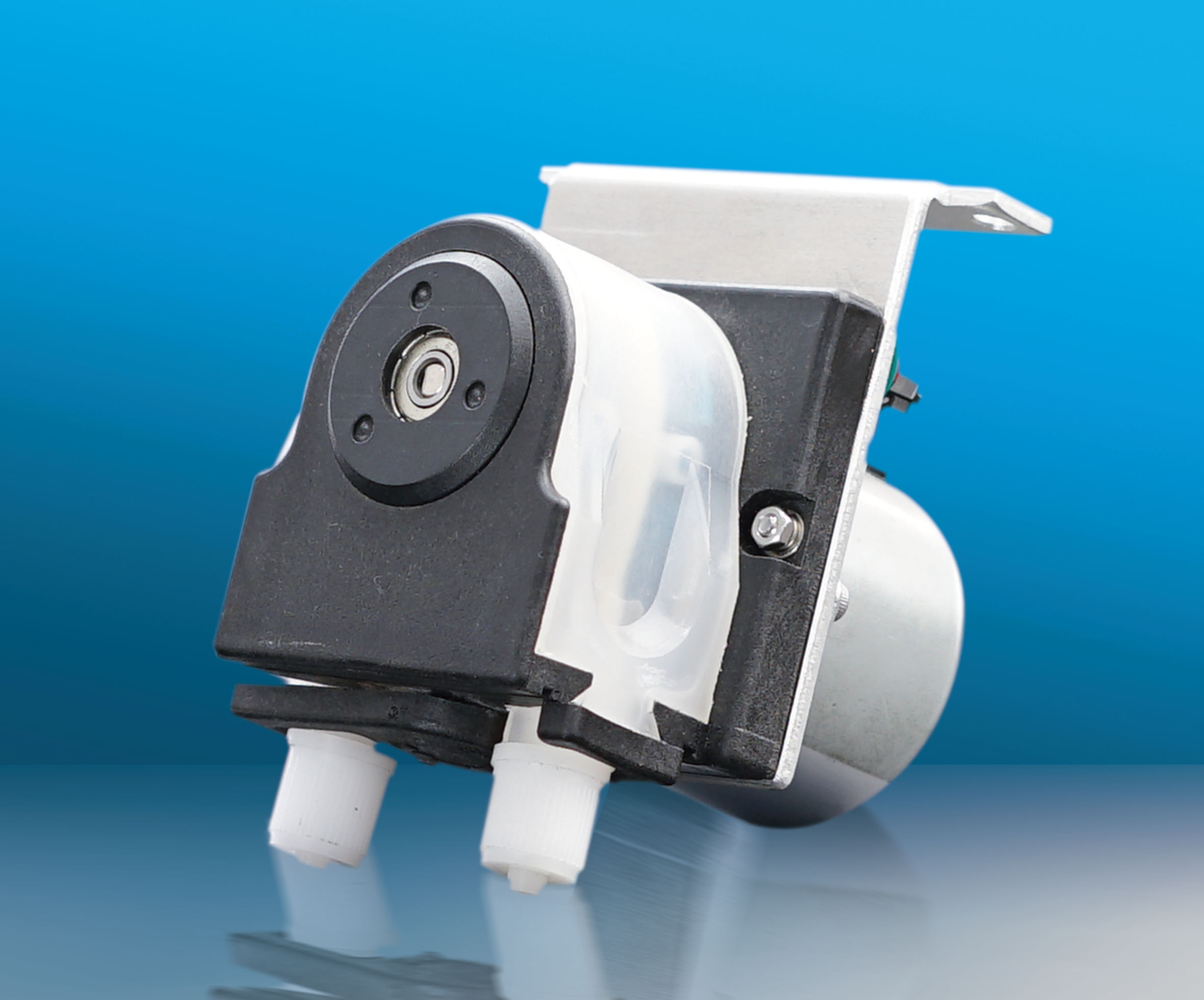

The TMS peristaltic pump is driven by a fixed-speed AC decelerating motor, and the hose can be equipped with a pagoda-type pipe joint. The pump head is equipped with a spring, which can greatly increase the life of the hose. Beautiful appearance, small size, simple and intuitive operation, suitable for OEM supporting use.
| range of rotation | 5rpm/10rpm(customizable) | flow | 0.3/0.6/h |
| motor | AC synchronous geared motor | Applicable power supply | AC 220V 50Hz |
| working environment | Ambient temperature 0～40℃, relative humidity <80% | Power consumption | ≤6W |
| Dimensions | 95*90*105（mm） | Applicable hose | 16# 25# |
| weight | 0.7kg |
